WIDOS 24000 WM

WIDOS 16000 W CNC

Pipe Welding Technology widos-24000-wm

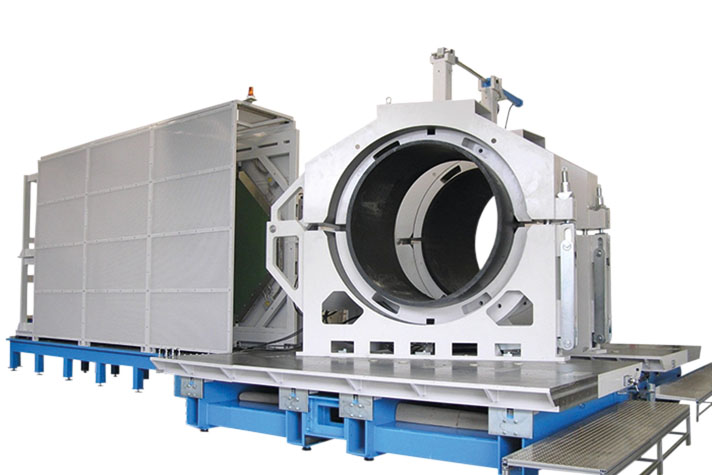

The WIDOS 24000 workshop machine is a manual welding machine for the heating element butt welding of PE and PP pipes and fittings from OD 1600 up to OD 2400. It is developed for the economic fabrication of high quality fittings like bends, T-pieces 90°, T-pieces 45° and cross-pieces in the workshop. The table drive enables by steady running precisely controllable and high forces and is ideally designed to meet the needs of plastics processing. With special clamping tools, the welding of special components, such as corrugated pipes and insulating pipes and non-standard pipes are possible. The complete machine base (base frame) is designed as solid and torsion-free steel welding construction. The operation of the machine, the heating element and the planer is done via control panel, which is connected to the basic machine firmly and with a single line. The console may be equipped as entirely manual version with optional weld log recording as simple WIDOS SPA 600. Starting with the weld log recording all data is registered onto SD card as electronic data log. The data log contains all relevant nominal and current values of the welding as well as a possible error code upon parameter discrepancies.

The WIDOS 24000 workshop machine is a manual welding machine for the heating element-butt welding of PE and PP pipes and fittings from OD 1600 up to OD 2400. It is developed for the economic fabrication of high quality fittings like bends, T-pieces 90°, T-pieces 45° and cross-pieces in the workshop. The heating element is designed as an ideally even heating plate with integrated heating cartridges and high quality anti-stick coating. The cartridge technology makes it easy to replace individual elements in case of breakdown without losing the entire plate. The heating element can be regulated in different zones depending on the size and thus has an ideal temperature distribution to the surface. The heating element is driven between the machine tables on precise linear guidings by a pneumatic drive. This allows very accurate positioning upon simultaneously very high accelerations and fast motions and very smooth stopping at the final positions. This is of great importance in meeting the shortest possible changeover times. The planer consists of solid, low-friction planer discs. They are driven by a powerful electric gear motor with soft start on a wide guiding and are mounted on the basic machine with a very stable welded steel housing. The planer is driven between the machine tables and locked into the working position on a precise linear guide by a pneumatic drive. Therefore a very precise positioning can be carried out.
